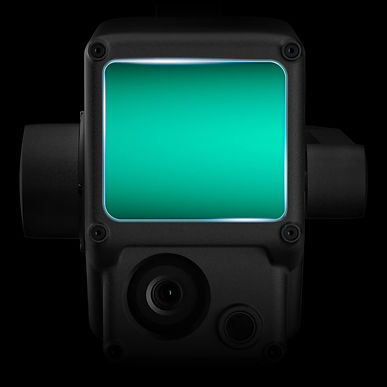

Zenmuse L1

Instant Clarity. Superior Accuracy.

Screen%20Shot%202019-07-21%20at%208.06_e

Livox LiDAR Module


1" CMOS Visual Camera


High Accuracy IMU

Zenmuse L1

Instant Clarity. Superior Accuracy.


Integrated LiDAR, RGB, IMU


2km Max Flight Coverage


5cm Vertical Accuracy


10cm Horizontal Accuracy


Point Rate: 240,000 pts/s


Supports 3 Returns


Detection Range: 450m

A Lidar + RGB Solution for Aerial Surveying

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.


Visualize Data as You Fly
Livox Lidar Module

-Frame Lidar with up to 100% effective point cloud results
-Detection Range: 450m
(80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
-Effective Point Rate: 240,000 pts/s
-Supports 3 Returns[3]
-Non-repetitive scanning pattern, Repetitive scanning pattern


Accurate Details at Your Disposal
High-accuracy IMU

-Vision Sensor for Positioning Accuracy
-GNSS, IMU, RGB Data Fusion


Everything in View
RGB Camera

- 20MP
- 1-inch CMOS
- Mechanical Shutter


Point Cloud LiveView

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly.
You can also verify fieldwork quality by checking point cloud data immediately after each flight.

Measurement and Annotation

Acquire and communicate critical dimensions on the point cloud model using measurements and annotations.


Point Cloud LiveView

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly.
You can also verify fieldwork quality by checking point cloud data immediately after each flight.

Zenmuse L1

Instant Clarity. Superior Accuracy.

LiDAR, RGB, w/ IMU

450m Detection Range

IP54 Ingress Rating


Support 3 Returns

Point Rate: 240,000 pts/s

Point Cloud LiveView
