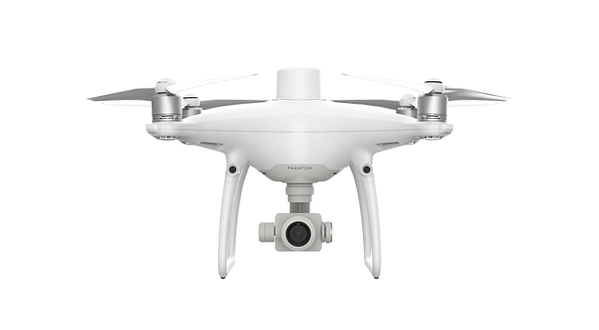

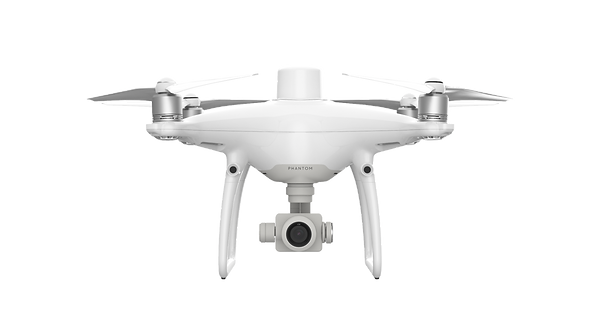

Phantom 4 RTK

P4RTK Website Assets (1).jpg

Phantom 4 RTK

Visionary Intelligence. Elevated Accuracy.

Screen%20Shot%202019-07-21%20at%208.06_e
Screen Shot 2019-07-22 at 4.25.37 PM.png
Screen Shot 2019-07-22 at 4.26.15 PM.png
Screen Shot 2019-07-22 at 4.26.08 PM.png
Screen Shot 2019-07-22 at 4.26.24 PM.png
P4RTK VR Rendering (2).png

Single Downward Gimbal

P4 RTK

Visionary Intel. Elevated Accuracy


Unibody Airframe


1" CMOS Sensor


TimeSync


OcuSync


GS RTK APP


Built-in RTK Module


D-RTK2 GNSS

Precise Imaging System

Capture the best image data with a 1-inch, 20-megapixel CMOS sensor. Mechanical shutter makes mapping missions or regular data capture seamless as the Phantom 4 RTK can move while taking pictures without the risk of rolling shutter blur. Due to the high resolution, the Phantom 4 RTK can achieve a ground sample distance (GSD) of 2.74 cm at 100 meters flight altitude.To ensure each Phantom 4 RTK offers unparalleled accuracy, every single camera lens goes through a rigorous calibration process, with parameters saved into each image’s metadata, letting post-processing software adjust uniquely for every user.

P4RTK Website Assets (3).png

Next Generation Mapping

DJI has rethought its drone technology from the ground-up, revolutionizing its systems to achieve a new standard for drone accuracy – offering Phantom 4 RTK customers centimeter-accurate data while requiring fewer ground control points.

1cm+1ppm
RTK Horizontal Positioning Accuracy

1.5cm+1ppm
RTK Vertical Positioning Accuracy

5cm*
Absolute Horizontal Accuracy
of Photogrammetric Models


*When flying at 100m height, 2.7cm GSD, sunny.

Centimeter-Level Positioning System

P4RTK Website Assets (2).jpg

A new RTK module is integrated directly into the Phantom 4 RTK, providing real-time, centimeter-level positioning data for improved absolute accuracy on image metadata. In addition to optimized flight safety and precise data collection, the Phantom 4 RTK stores satellite observation data to be used for Post Processed Kinematics (PPK), which can be conducted using DJI Cloud PPK Service*. Fit the Phantom 4 RTK to any workflow, with the ability to connect this positioning system to the D-RTK 2 High Precision GNSS Mobile Station, or NTRIP (Network Transport of RTCM via Internet Protocol) using a 4G dongle or WiFi hotspot.

*DJI Cloud PPK Service is currently not available in in the US, Canada, Hong Kong SAR, or Macau SAR. Support is coming soon. For more information on the Service and a free trial, please contact your local dealer.

Centimeter-Level Positioning System

To take full advantage of the Phantom 4 RTK’s positioning modules, the new TimeSync system was created to continually align the flight controller, camera and RTK module. Additionally, TimeSync ensures each photo uses the most accurate metadata and fixes the positioning data to optical center of the lens – optimizing the results from photogrammetric methods and letting the image achieve centimeter-level positioning data.

P4RTK Website Assets (2).png

Built for Surveyors

Purpose-Built Application

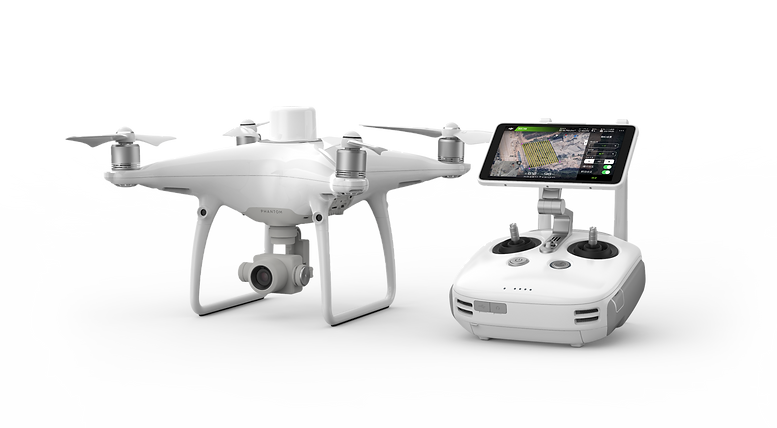

A new DJI GS RTK app and Remote Controller with built-in screen, giving users a streamlined control scheme for surveying missions and other data acquisition scenarios.

Variety of 3rd Party Applications
Pilots with experience using 3rd party apps on DJI drones can access the world's leading drone app ecosystem for their Phantom 4 RTK with the SDK Remote Controller.

OcuSync Transmission System
Enjoy stable and reliable HD image and video transmission at distances of up to 7 km, great for mapping larger sites*.

Compatibility with D-RTK 2 Mobile StationSupport your Phantom 4 RTK missions with the D-RTK 2 Mobile Station – providing real-time differential data to the drone and forming an accurate surveying solution, or acquire accurate location coordinates when used as an RTK rover.

P4RTK Scene Pic (7).jpg

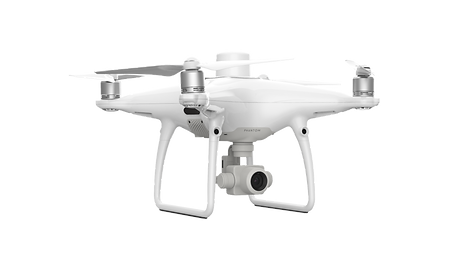

Phantom 4 RTK

Visionary Intel, Elevated Accuracy.

P4RTK VR Rendering (6).png

8km Max Transmission

30 min Max Flight Time

1" CMOS Sensor

Anti-Collision Sensors

TimeSync

Built-in RTK Module
