Zenmuse H20 Series

Unleash the Power of ONE.

Screen%20Shot%202019-07-21%20at%208.06_e
H20T_Side Face2.png

20MP Zoom Camera


12MP Wide Camera


Thermal Camera 640 x 512 px


Laser Range Finder (LRF)

Zenmuse H20 S.

Unleash the Power of One.


20MP Zoom Camera (23X)


12Mp Wide Camera (82.9)


Discreet Mode


Mobile SDK Compatibility


DJI SkyPort Compatibility


TimeSync


Detection Range: 450m

“H” For Hybrid

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications. Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.


All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

H20_Side Face.png

H20 – Triple-Sensor Solution

20MP 1/1.7" CMOS Sensor
   23x Optical Zoom, 200x Max Zoom
   4k 30fps Video Resolution

12MP Wide Camera (1/2.3" CMOS Sensor)
   Equivalent Focal Length:
24mm, DFOV: 82.9
Laser Range Finder (LRF) 3 -1200m
   Accuracy: ± (0.2 m + D×0.15%)

H20T_Side Face2.png

H20T – Quad-Sensor Solution

20MP 1/1.7" CMOS Sensor
   23x Optical Zoom, 200x Max Zoom
   4k 30fps Video Resolution

12MP Wide Camera (1/2.3" CMOS Sensor)
   Equivalent Focal Length: 24mm, DFOV: 82.9

Laser Range Finder (LRF) 3 -1200m
   Accuracy: ± (0.2 m + D×0.15%)

Radiometric Thermal Camera: 640×512, 30fps
   Thermal Sensitivity: ≤ 50mk@f1.0 (NEDT)
   DFOV: 40.6°

Multi-Sensor Payloads

See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

Accurate Temperature Measurement

Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

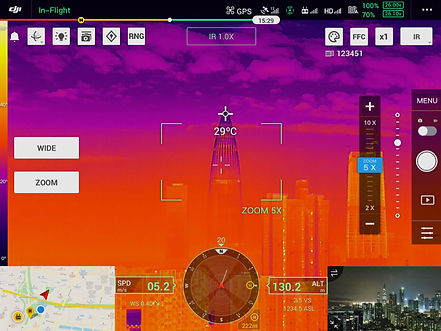

Spot Meter

Tap a point to get a real-time reading of the surface temperature.

Area Measurement(1).png

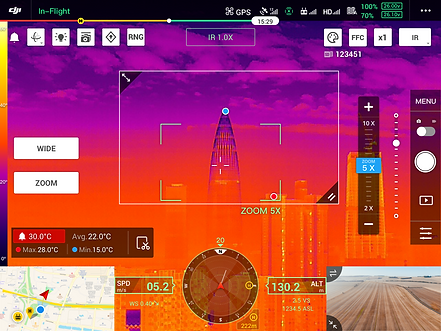

Area Measurement

Select an area to view the lowest, highest, and average temperatures.

computer_icon

DJI Thermal Analysis Tool

The DJI Thermal Analysis Tool can be used to analyze and process thermal images. By identifying the temperature information of critical areas of the target, the software can be used to analyze objects across many industrial applications. Major incidents can be prevented or addressed quickly by using the software to detect and pinpoint temperature abnormalities in equipment in routine inspections.
